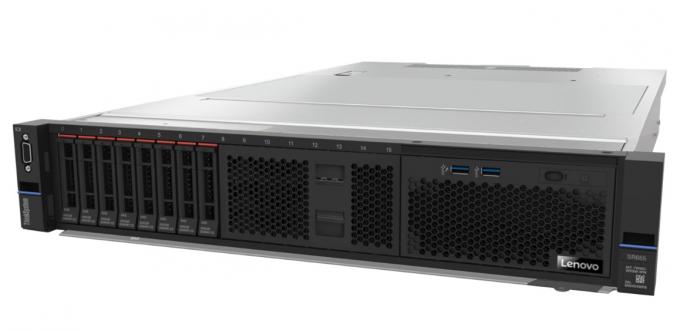

ThinkSystem SR665 utilizes AMD EPYC 2-Socket Rack Servers | |
Specifications | |
Product Name(s) | ThinkSystem SR665 |
Form Factor | 2U rack server |
Processors | Up to 2 AMD EPYC™ 7002 / 7003 Series Processors, up to 64C, 280W |
Memory | 32x DDR4 memory slots; Maximum 4TB using 128GB 3DS RDIMMs; up to 1DPC at 3200MHz, 2DPC at 3200MHz |
Drive Bays | Up to 20x 3.5-inch or 40x 2.5-inch drives; Maximum of 32x NVMe drives with 1:2 connection |
Expansion Slots | Up to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot |
GPU | Up to 8x single-width GPUs or 3x double-width GPUs |
Network Interface | OCP 3.0 mezz adapter, PCIe adapters |
Power | Dual redundant PSUs (up to 1800W Platinum) |

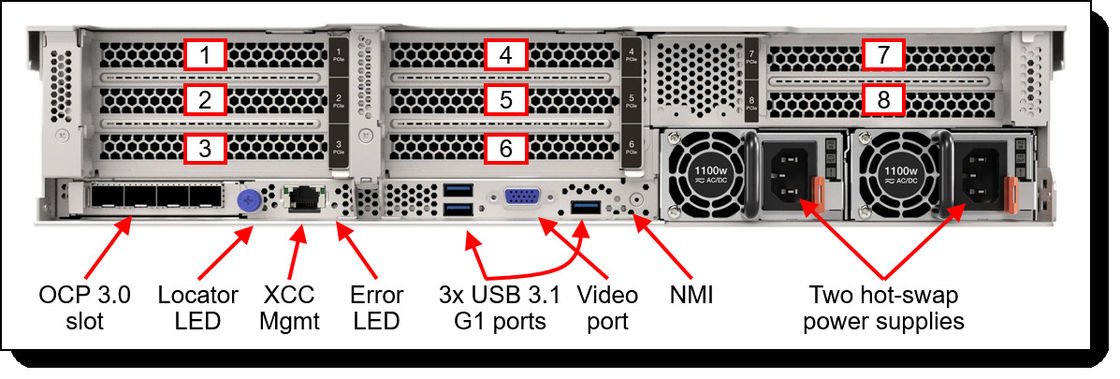

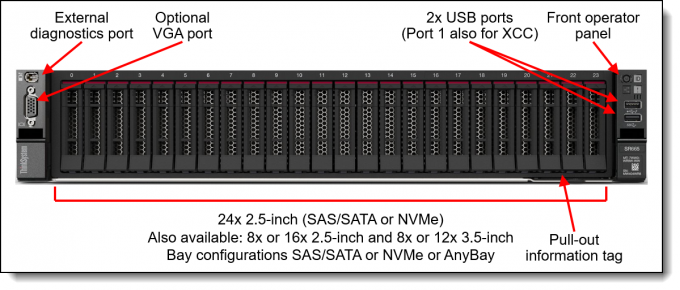

Ports | Front: 1x USB 3.1 G1, 1x USB 2.0, 1x VGA (optional) |
Rear: 3x USB 3.1 G1, 1x Serial port (optional) 1x RJ-45 (management) | |
System Management | Lenovo XClarity Controller |
OS Support | Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi |
Limited Warranty | 1- and 3-year customer replaceable unit and onsite services, next business day 9x5; optional service upgrades |
Base CTO models | ||
Machine Type/Model | Machine Type/Model | Description |
General purpose | for HPC and AI | |
7D2VCTO1WW | 7D2VCTOLWW | ThinkSystem SR665 – 3-year Warranty |
7D2WCTO1WW | 7D2WCTOLWW | ThinkSystem SR665 – 1-year Warranty |
Chassis base feature codes | ||
Feature code | Description | |
B8LZ | ThinkSystem 2U 2.5" Chassis with 8, 16 or 24 Bays | |
B8M0 | ThinkSystem 2U 3.5" Chassis with 8 or 12 Bays | |
Motherboard feature codes (CTO orders) | ||
Feature code | Description | |
B8L1 | ThinkSystem SR665 MB | |
BF6Z | ThinkSystem SR665 2U Refresh MB | |
(required for EPYC 7003 processors and NVIDIA A100 GPU) | ||
Backplanes for front drive bays | ||
Feature code | Maximum supported | |
Front 3.5-inch drive backplanes | ||
B8LP | ThinkSystem 2U 8x3.5" SAS/SATA Backplane | 1 |
B8LT | ThinkSystem 2U 12x3.5" SAS/SATA Backplane | 1 |
B8LK | ThinkSystem 2U 12x3.5" AnyBay Backplane | 1 |
Front 2.5-inch drive backplanes | ||
B8LU | ThinkSystem 2U 8x2.5" SAS/SATA Backplane | 3 |
B8LM | ThinkSystem 2U/4U 8x2.5" AnyBay Backplane | 1 |
BCQM | ThinkSystem 2U/4U 8x2.5" NVMe Backplane | 3 |
Integrated Diagnostics Panel (for 2.5-inch configurations with 8 or 16 bays only) | ||
BMJA | ThinkSystem 2U 16x2.5" Front Operator Panel v2 | 1 |
B8MS | ThinkSystem 2U 16x2.5" Front Operator Panel | 1 |
