ATTRIBUTE SPECIFICATION

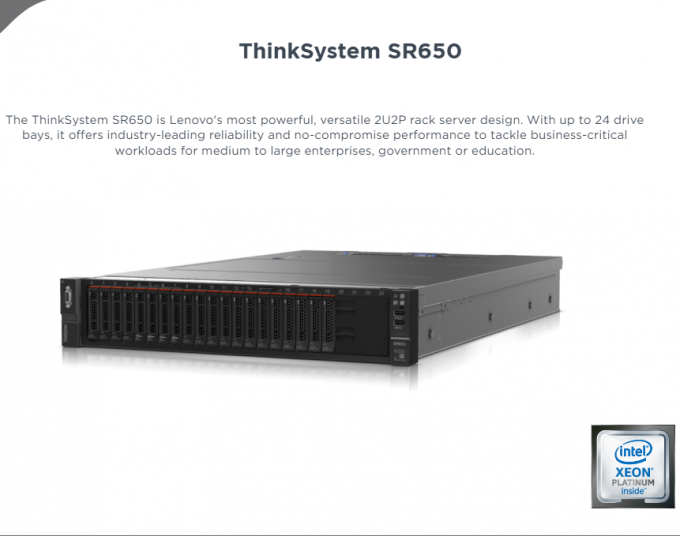

Form Factor/Height2U rack server
ProcessorsUp to 2 second-generation Intel® Xeon® Platinum processor, up to 205W

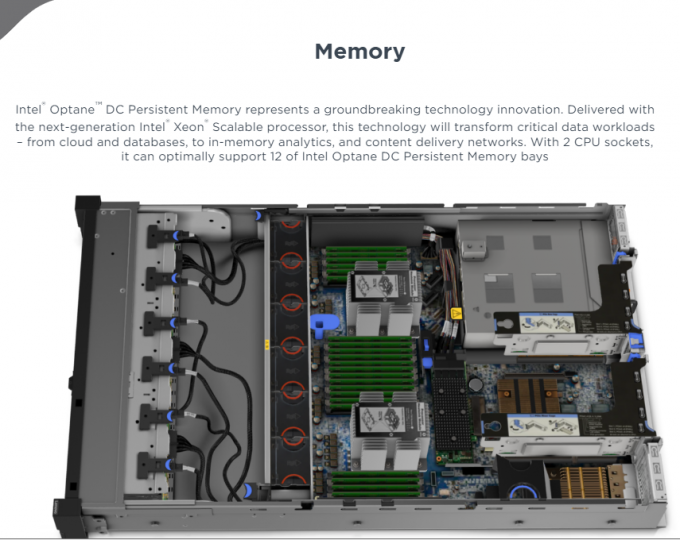

MemoryUp to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4

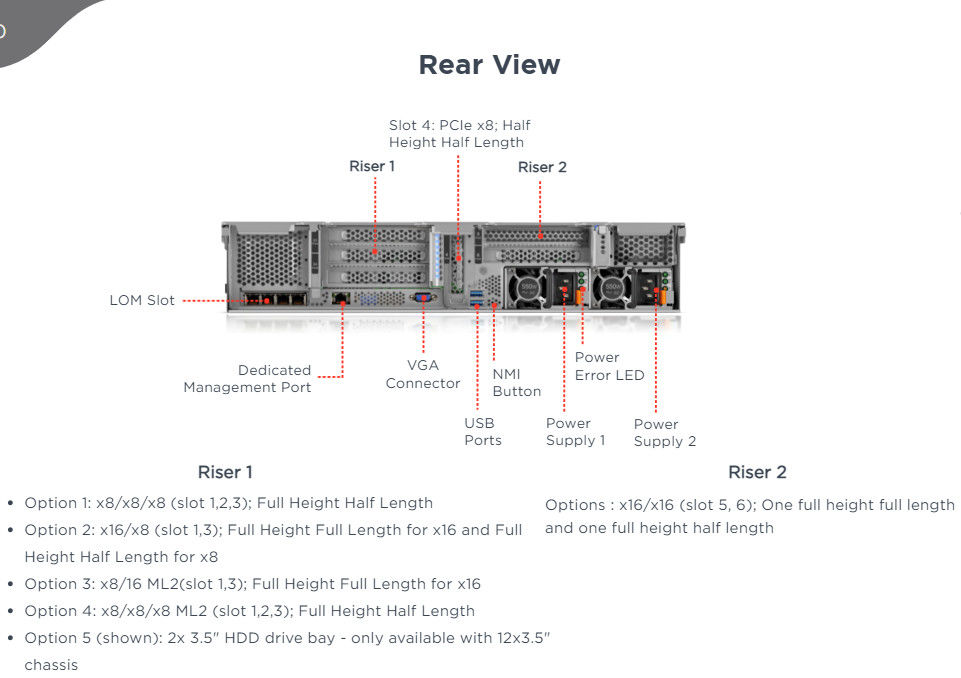

Expansion SlotsUp to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter

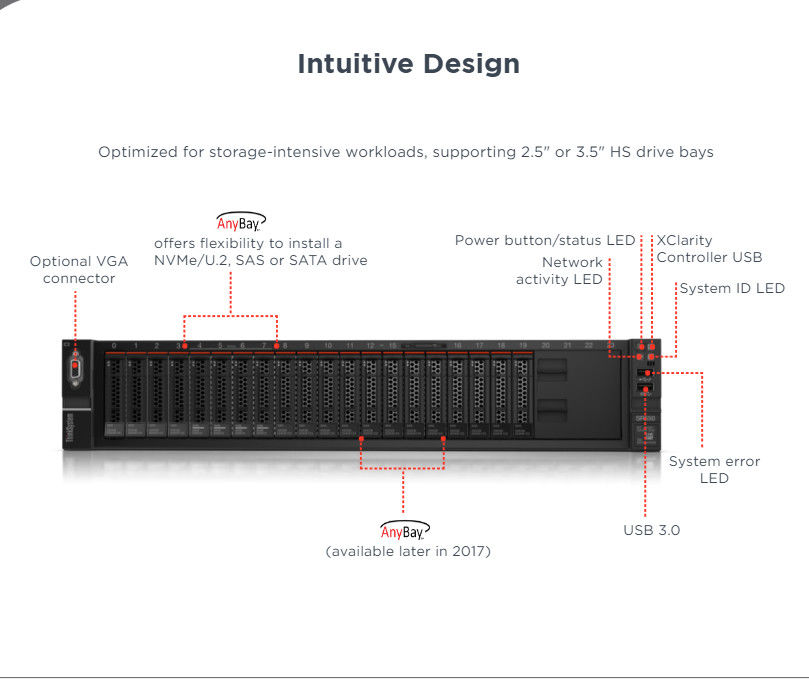

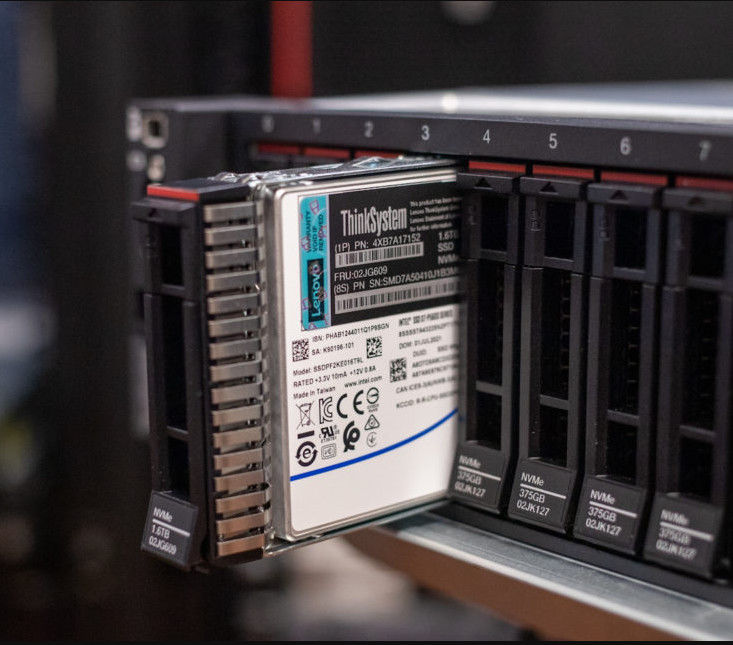

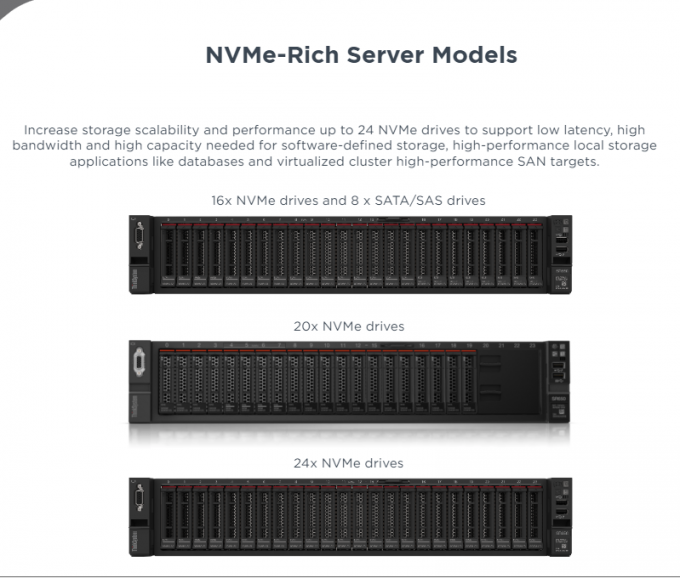

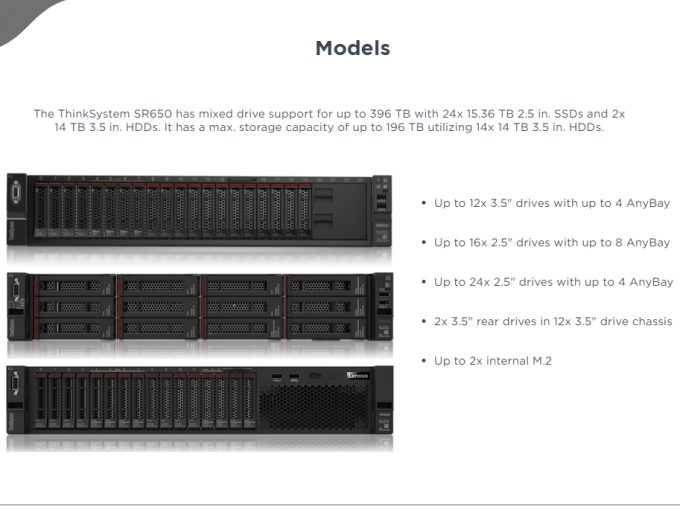

Drive BaysUp to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives
(RAID 1)
HBA/RAID SupportHW RAID (up to 24 ports) with flash cache; up to 16-port HBAs
Security and Availability FeaturesTPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light
path diagnostic LEDs; front-access diagnostics via dedicated USB port
Network Interface2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port
Power (Energy Star 2.0 compliant)2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V
DC 80 PLUS Platinum
Systems ManagementXClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity
Integrator plugins, and XClarity Energy Manager centralized server power management
Operating Systems SupportedMicrosoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for details.
Limited Warranty1- and 3-year customer replaceable unit and onsite service, next business day 9x5, optional service upgrades
