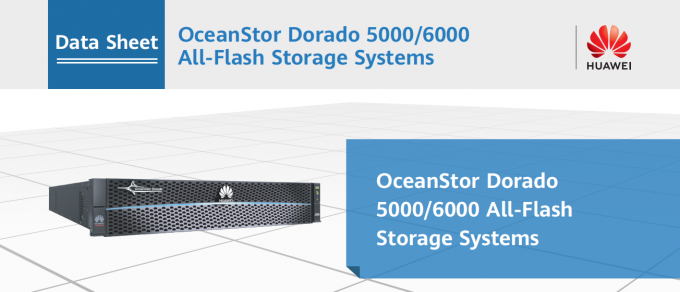

HUAWEI Storage Server HUAWEI OceanStor Dorado 5000/6000 V6 All-Flash Storage Systems
| Technical Specifications | ||
| Model | OceanStor Dorado 5000 | OceanStor Dorado 6000 |
| Hardware Specifications | ||
| Maximum Number of Controllers | 32 | 32 |
| System Cache | 256 GB-8 TB | 1 TB- 16 TB |
| Supported Storage Protocols | FC, iSCSI, FC- NVMe,NVMe over RoCE,NFS, CIFS,NDMP,S3* | |
| Front- End Port Types | 8/16/32 Gbps FC/FC- NVMe, 10/25/40/100 GbE, 25/100 Gbps NVMe over RoCE | |
| Back- End Port Types | SAS 3.0/ 100Gb RDMA | |
| Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure | 12 | |
| Maximum Number of Front- End Ports per Controller Enclosure | 48 | |
| Maximum Number of SSDs | 3,200 | 4,800 |
| SSDs | 1.92 TB/3.84 TB/7.68 TB/15.36TB palm-sized NVMe SSD, 960 GB/1.92 TB/3.84 TB/7.68 TB/15.36 TB SAS SSD | |
| SCM Supported | 800 GB SCM/1.6TB* | |
| Software Specifications | ||
| Supported RAID Levels | RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failures of 3 SSDs) | |
| Number of LUNs | 16,384 | 32,768 |
Value-Added Features | SmartDedupe, SmartVirtualization, SmartCompression, SmartMigration, SmartThin, SmartQoS, SmartTier*, SmartCache, SmartQuota,SmartMulti-Tenant, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock,HyperEncryption ,HyperDetect* , CloudBackup* | |
| Storage Management Software | DeviceManager UltraPath DME- IQ | |
| Physical Specifications | ||
Power Supply | SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC, -48V to -60V DC Controller enclosure/Smart SAS disk enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 100–240V AC±10%,192V–288V DC, 260V–400V DC, -48V to -60V DC | SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC, -48V to -60V DC Controller enclosure/Smart SAS SSD enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 192V–288V DC, 260V–400V DC, -48V to -60V DC |
Dimensions (H x W x D) | SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm x 447 mm x 520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm | SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm × 447 mm ×520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm |
Weight(with disks) | SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg | SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg |
| Operating Temperature | –60 m to +1800 m altitude: 5°C to 35°C (bay) or 40°C (enclosure) 1800 m to 3000 m altitude: The max. temperature threshold decreases by 1°C for every altitude increase of 220 m | |
| Operating Humidity | 10% RH to 90% RH | |
