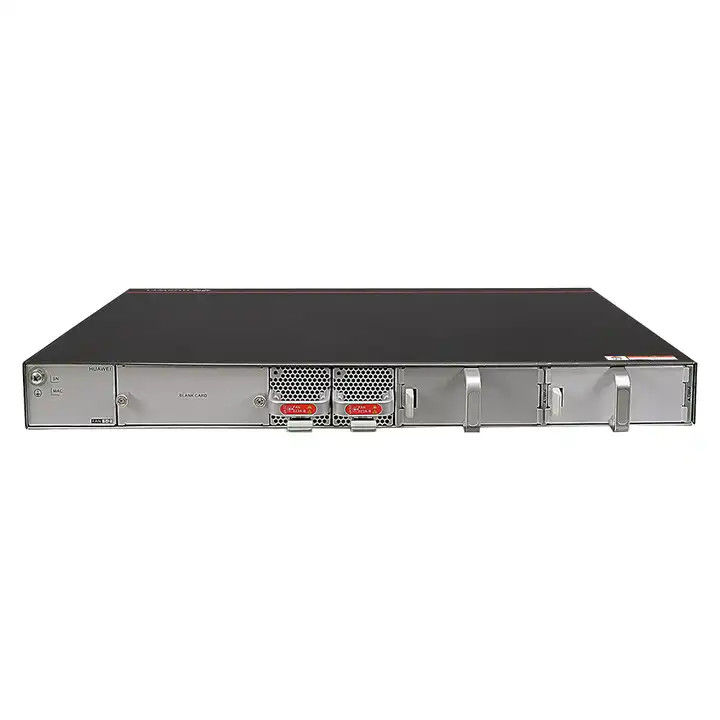

Huawei S5731-S48P4X Cloudengine S5731 S 48 X 10/100/1000Base-T PoE+ Ports 4 X 10GE SFP+ Ports

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	ce
Model Number:	S5731-S48P4X

Minimum Order Quantity:	1 pieces
Packaging Details:	BOX
Delivery Time:	3-6days
Payment Terms:	L/C, T/T

Private Mold:	NO	Products Status:	Stock
Model Number:	S5731-S48P4X	Memory (RAM):	2 GB
Flash:	1 GB In Total.	Chassis Height:	1U
Dimensions (H X W X D):	43.6 Mm X 442.0 Mm X 448.0 Mm (1.72 In. X 17.4 In. X 17.7 In.)	Weight (with Packaging):	8.8 Kg (19.40 Lb)
Highlight:	Cloudengine S5731 S , CLOUDENGINE S5731 S48P4X

Specification

Item	Description
Memory (RAM)	2 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	54.96 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	8.8 kg (19.40 lb)
Stack ports	10GE SFP+ ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 132 W 100% PoE loads: 1750 W (PoE: 1440 W)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	108 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 62.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02353AJH 02353AJH-001 02353AJH-003
