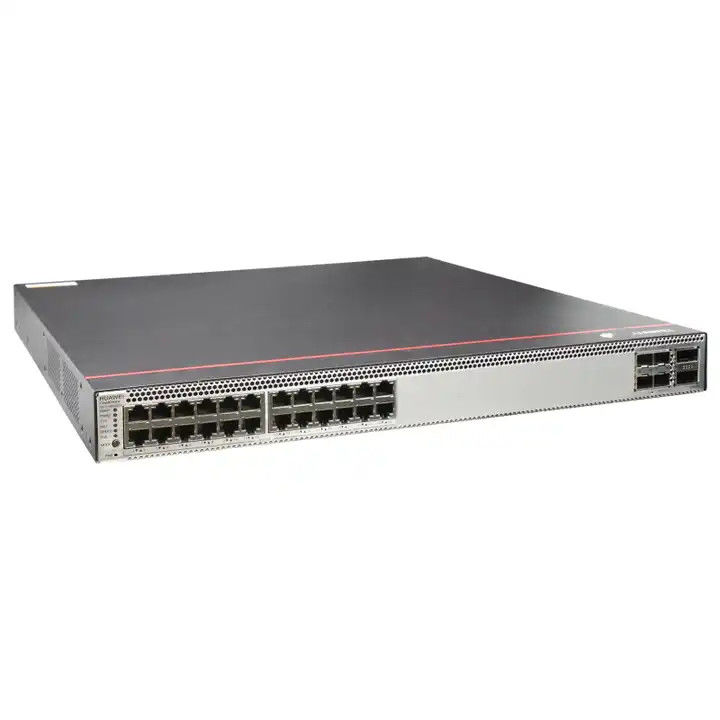

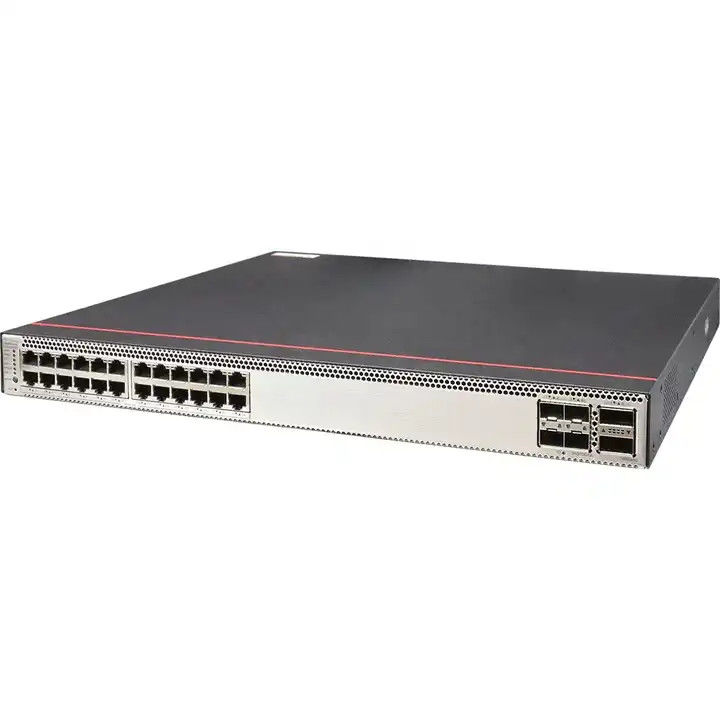

Huawei S5732-H24UM2CC CloudEngine S5732-H Series Multi GE Switch Management 1024 APs 24 X 100M/1G/2.5G/5G/10

Place of Origin:	China
Brand Name:	HUAWEI
Certification:	ce
Model Number:	S5732-H24UM2CC

Minimum Order Quantity:	2 pieces
Packaging Details:	BOX
Delivery Time:	3-6days
Payment Terms:	L/C, T/T

Private Mold:	NO	Products Status:	Stock
Model Number:	S5732-H24UM2CC	Ports:	24 X 100M/1G/2.5G/5G/10G Base-T Ethernet Ports, 4 X 25 GE SFP28 + 2 X 40 GE QSFP+ Or 2 X 100 GE QSFP28
Switching Capacity:	1.28 Tbit/s/2.4 Tbit/s	PoE++:	Supported
Extended Slots:	One Extended Slot, Supports 2 X 25 GE SFP28 Or 8 X 10 GE SFP+, 8 X 25 GE SFP28 Cards	Memory (RAM):	4 GB
Highlight:	Multi GE HUAWEI S5732 H24UM2CC , Multi GE Cloudengine S5732 H

S5732-H24UM2CC Overview

Next-generation CloudEngine S5732-H Series Multi-GE Switches offer either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.

Based on Huawei's unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a free mobility feature that offers a consistently high-quality user experience.

Specification

item	value
Private Mold	NO
Products Status	Stock
Product Name	S5732-H24UM2CC
Condition	NIB Original
Dimensions	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Warranty	1 year

S5732-H24UM2CC bundles

Part Number	Description	Remarks
02353HUC 02353HUC-003	S5732-H24UM2CC Premium(24100M/1G/2.5G/5G/10G Ethernet ports, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)	By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.
02353SJY 02353SJY-010	S5732-H24UM2CC Base(24100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)	By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s.
02353SJY-001 02353SJY-011	S5732-H24UM2CC 2.5&10G Bundle(12100M/1G/2.5G, 12100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 425GE + 240GE or 2100GE, 1expansion slot, PoE++, 1*1000W AC power)	By default, one 1000 W AC power module is configured. By default, the first 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device, which contains the default rate "122.5GE+1210GE" supported by the multi-GE ports.
02353SJY-004 02353SJY-014	S5732-H24UM2CC 10G Bundle(24100M/1G/2.5G/5G/10G Ethernet ports, 425GE SFP28 + 240GE or 2100GE QSFP28 ports, 1expansion slot, PoE++, 11000W AC power)	By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device, which contains the default rate "24*10GE" supported by the multi-GE ports.

Part Number

Description

Remarks

02353HUC

02353HUC-003

S5732-H24UM2CC Premium(24*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)

By default, no power supply is configured.

By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.

02353SJY

02353SJY-010

S5732-H24UM2CC Base(24*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)

By default, no power supply is configured.

By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s.

02353SJY-001

02353SJY-011

S5732-H24UM2CC 2.5&10G Bundle(12*100M/1G/2.5G, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*25GE + 2*40GE or 2*100GE, 1*expansion slot, PoE++, 1*1000W AC power)

By default, one 1000 W AC power module is configured.

By default, the first 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s.

By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.

There is a label on the rear side of the device, which contains the default rate "12*2.5GE+12*10GE" supported by the multi-GE ports.

02353SJY-004

02353SJY-014

S5732-H24UM2CC 10G Bundle(24*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, 1*1000W AC power)

By default, one 1000 W AC power module is configured.

By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s.

There is a label on the rear side of the device, which contains the default rate "24*10GE" supported by the multi-GE ports.
