Huawei SmartAX MA5800 H901GPHF,16 Port H901GPHF,SMARTAX MA5800 X7 H901GPHF |

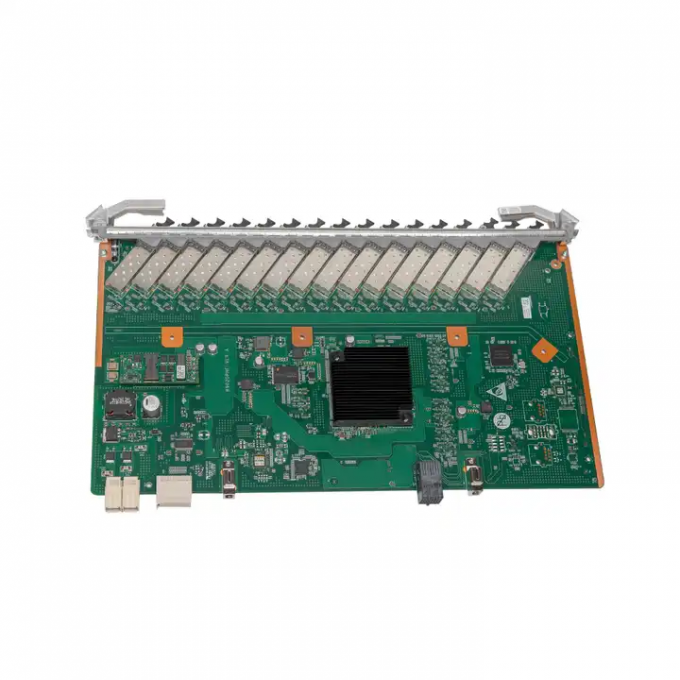

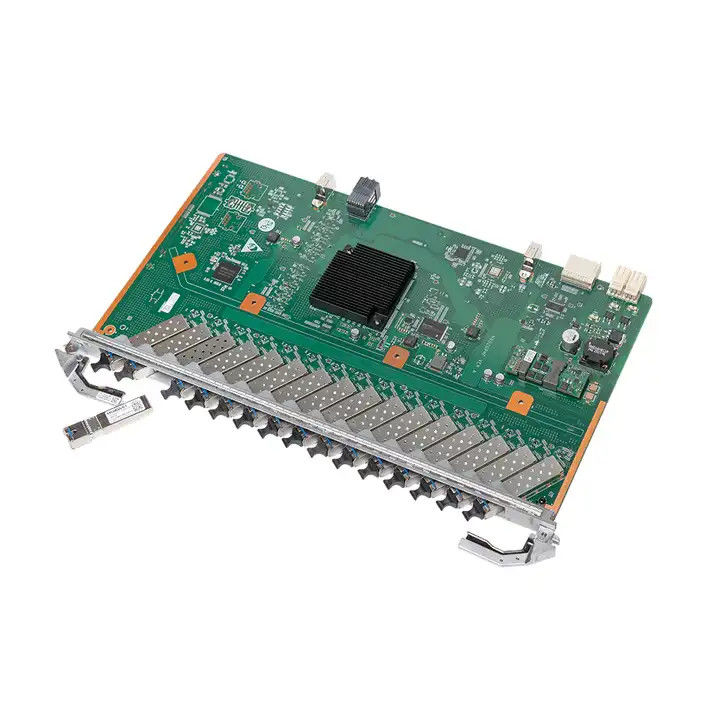

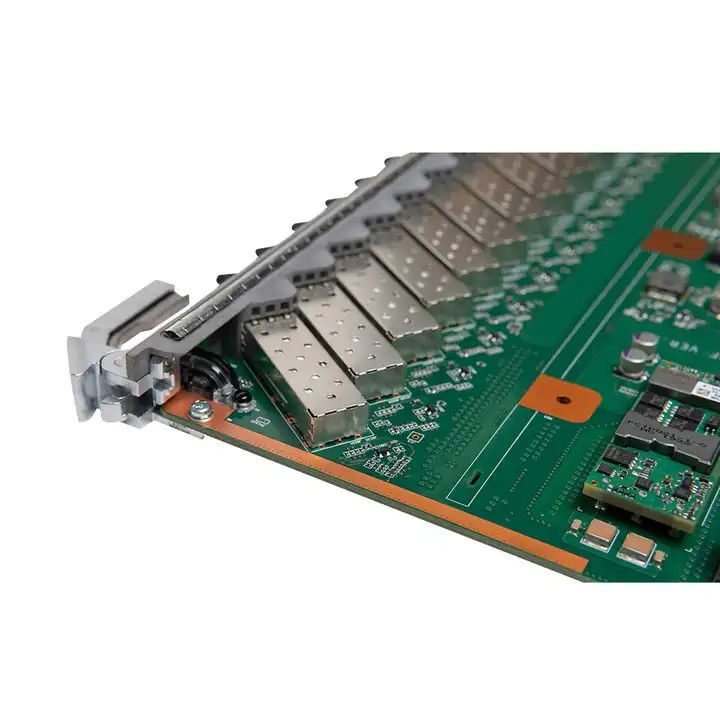

Huawei SmartAX MA5800 H901GPHF 16-port GPON OLT interface board
H901GPHF Specification | |
Part Number | 03022SQW |
Model |
H901GPHF
|
Product Description |
16-port Advanced GPON OLT Interface Board |

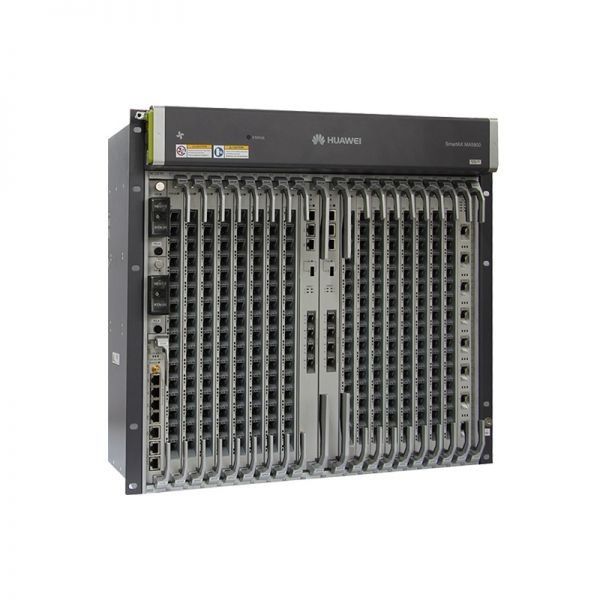

Product Series | MA5800-X7
|
Dimensions (H x W x D) | 442 mm x 268.7 mm x 263.9 mm
|
Maximum Number of Ports in a Subrack |
112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
Switching Capacity of the System | 7 Tbit/s
|
Maximum Number of MAC Addresses |
262,143 |
Maximum Number of ARP/Routing Entries | 64K |
Ambient Temperature | -40°C to 65°C Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
Working Voltage Range | -38.4V DC to -72V DC |
Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
IPv6 |
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
|
