PowerEdge Architecture | PowerEdge MX | PowerEdge FX2/PowerEdge FX2S | PowerEdge VRTX |
Form factor | 7U enclosure with 8 slots | Full-width, 2U enclosure | Tower or 5U rack modular chassis |

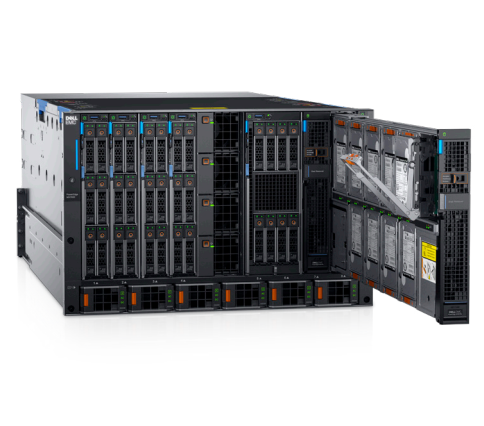

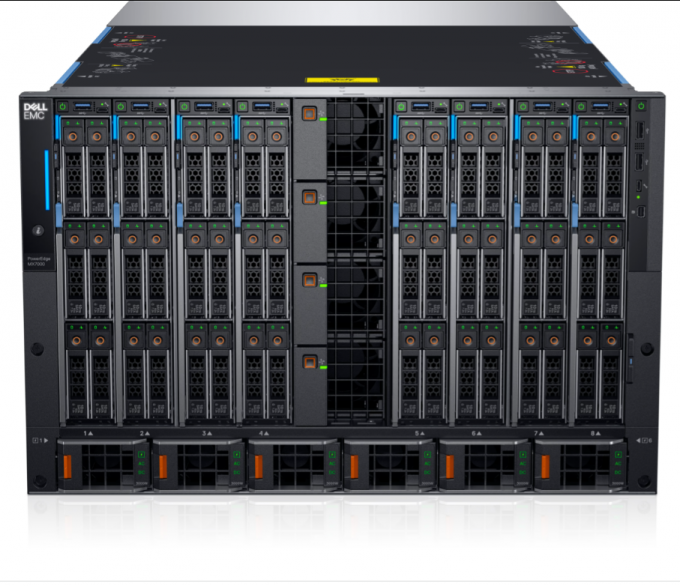

Description | Modular chassis that accommodates a variety of compute and storage sled combinations, connected by high-speed fabrics, sharing power, cooling and managed by embedded OpenManage Enterprise – Modular Edition systems management | An industry standard 2U rack-mount chassis that supports shared, redundant power and cooling, I/O fabric and management infrastructure and accommodates compact, customizable blocks of server storage and networking. | Integrates servers, storage, networking and management into a quiet data center under your desk |
I/O slots | 2 USB 2.0 Type A or KVM control (keyboard and mouse only) 1 Mini Display Port connector for video | FX2s: Supports up to 8 low-profile/half-length PCIe 3.0 modules | Up to 8 PCIe slots |

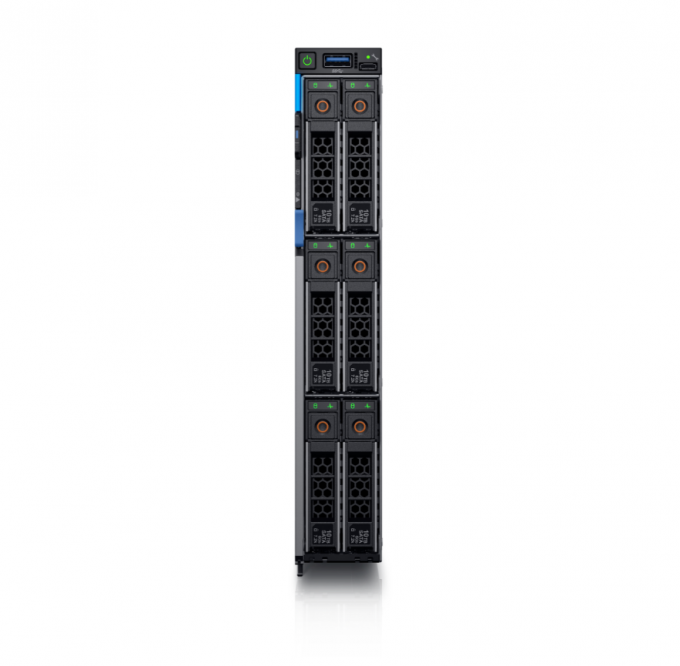

Server Sleds | Up to 8 PowerEdge MX740c Up to 4 PowerEdge MX840c | Up to 8 FC430 Up to 4 FC640 Up to 2 FC830 Up to 1 FC830 mixed with up to 2 FC640 | Up to 4 M640 Up to 2 M830 |
Storage Sleds | Up to 7 PowerEdge MX5016s | FX2S: Up to 2 FD332 mapped to 4 FC430 Up to 3 FD332 mapped to 1 FC640 Up to 2 FD332 mapped to 2 FC640 Up to 2 FD332 mapped to 1 FC830 | Internal: Up to 12 x 3.5” or 25 x 2.5” drives (SED available) External: Up to four MD1200 (12 x 3.5” drives) or MD1220 (24 x 2.5” drives) |
Power Supplies | Up to 6 PSUs; Platinum rated – 3000W output with high line AC input; N+1 or Grid redundancy support | Hot-plug PSUs: Platinum rated – 2400 W, 2000 W, or 1600WAC in 1+1 redundant or ROA or 2+0 non-redundant configurations | Supports up to four 1100 W or 1600 W AC power supply units (PSU) in 3+1 and 2+2 redundant configurations |
Fans | 5 80 mm rear and 4 60mm front hot-swap fans | 8 hot-swappable fans provide cooling to the I/O components in the system | 6 hot-pluggable, redundant fan modules and 4 blower modules |
I/O and Ports | Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25Gbps Ethernet, 32Gbps Fibre Channel, 12Gbps SAS | Choice of 3 Dell EMC modules: FN410s 4-ports SFP+, FN410t 4-port 10Gb Base-T, FN2210s 4-port Combination of 2 Fibre Channel and 2 Ethernet ports, or 2 pass-through modules. | Internal 1GbE 24-port switch Internal 10GbE switch Internal 1GbE 8-port pass-through module |
Embedded Management | OpenManage Enterprise – Modular Edition (OME-Modular); running on up to 2 redundant MX9002m management modules Quick Sync 2 Bluetooth Low Energy (BLE)/ wireless module option | One Chassis Management Controller (CMC) | Chassis Management Controller (CMC) |
