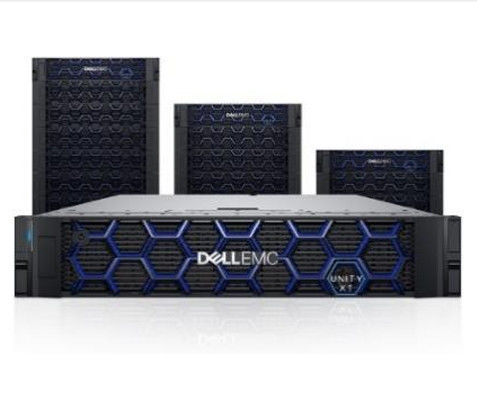

OEM unity xt880,unity xt880 Array,dell emc unity xt 480 Array |
Phone
+8615210306783Phone
+8615210306783
OEM unity xt880,unity xt880 Array,dell emc unity xt 480 Array |
380F/380 | 480F/480 | 680F/680 | 880F/880 | |
Min/Max Drive Count | Min. 6 SSDs or 10 HDDs / Max. 500 | Min. 6 SSDs or 10 HDDs / Max. 750 | Min. 6 SSDs or 10 HDDs / Max. 1000 | Min. 6 SSDs or 10 HDDs / Max. 1500 |
Array Enclosure | A 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives | |||
Drive Enclosure (DAE - Disk Array Enclosure) | All-Flash (F) models support 2.5” drives in the 2U twenty-five drive tray. Hybrid models support 2.5“drives in 2U twenty-five drive and 3.5” drives in 3U fifteen drive trays. | |||
Standby Power System | Dell Unity systems are powered by 2 power supplies (PS) per DPE/DAE. Each power supply can provide power to the entire module if the peer PS has been removed or is faulted. DPE power during a power failure is provided by a Battery Back Up (BBU) module. BBU is located within the SP enclosure and provides power to a single module (power zone) | |||
RAID Options | 1/0, 5, 6 | |||
CPU per Array | 2 x Intel CPUs, 12 cores per Array, 1.7GHz | 2 x dual-socket Intel CPUs, 32 cores per Array, 1.8GHz | 2 x dual-socket Intel CPUs, 48 cores per Array, 2.1GHz | 2 x dual-socket Intel CPUs 64 cores per Array, 2.1GHz |
System Memory/Cache per Array | 128 GB | 192 GB | 384 GB | 768 GB |
Max FAST Cache Array* | Up to 800 GBs | Up to 1.2 TBs | Up to 3.2 TBs | Up to 6.0TBs |
Total CacheA | Up to 928 GBs | Up to 1.39 TBs | Up to 3.58 TBs | Up to 6.76 TBs |
Max Mezzanine cards per ArrayB | NA | 2 | 2 | 2 |
Max IO Modules ArrayC | 4 | 4 | 4 | 4 |
Embedded SAS IO Ports per Array | 4 x 4 lane 12Gb/s SAS ports for BE (back end) Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection | 4 x 4 lane 12Gb/s SAS ports for BE Connection |
Spec Sheet | 380F/380 | 480F/480 | 680F/680 | 880F/880 |
Optional SAS IO Array | NA | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) | 8 x 4 lane or 4 x 8 lane 12Gb/s SAS ports (for BE Connection) |
Base 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane | 2 x 4 Lane |
Max 12 Gb/s SAS BE Buses per Array | 2 x 4 Lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane | 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane |
Max FE (front end) Total Ports per Array (all types) | 20 | 24 | 24 | 24 |
Max Initiators per Array | 1,024 | 2,048 | 2,048 | 4,096 |
Max FC Ports per Array | 20 | 16 | 16 | 16 |
Embedded 10GbaseT Ports per Array | NA | NA | NA | NA |
Embedded CNA Array | 4 ports: 8/16 Gb FCD , 10Gb IP/iSCSI, or 1Gb RJ45 | NA | NA | NA |
1 Gbase-T/iSCSI Max Total Ports per Array | 20 | 24 | 24 | 24 |
10/25 GbE/iSCSI Max Total Ports per Array | 20 – 10GbE 16 – 25GbE | 24 | 24 | 24 |
Max Raw CapacityE | 2.4 PBs | 4.0 PBs | 8.0 PBs | 16.0 PBs |
Max SAN Hosts | 512 | 1,024 | 1,024 | 2,048 |
Max Number of Pools | 20 | 30 | 40 | 100 |
Max Number of LUNs Array | 1,000 | 1,500 | 2,000 | 6,000 |
Max LUN Size | 256 TB | 256 TB | 256 TB | 256 TB |
Max File Systems per Array | 1000 | 1500 | 2000 | 4000 |
Max File System Size | 256 TB | 256 TB | 256 TB | 256 TB |
Max attached snapshots per Array (Block) | 1000 | 1500 | 2000 | 6000 |
IOPSF (All Flash Models 380F – 880F) | up to 600K | up to 1.68M | up to 2.36M | up to 2.56M |
OS Support | See the Dell Simple Support Matrix on dell.com | |||
380F/380 DPE 25 2.5” SFF drives and four IO modules | 480F/480 DPE 25 2.5” SFF drives and four IO modules | 680F/680* DPE 25 2.5” SFF drives and four IO modules | 880F/880 DPE 25 2.5” SFF drives and four IO modules | |
POWER | ||||
AC Line Voltage | 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz | |||
AC Line Current (operating maximum) | 10.07 A max at 100 VAC; 5.04 A max at 200VAC | 10.6 A max at 100 VAC; 5.3 A max at 200VAC | 11.72 A max at 100 VAC; 5.86 A max at 200VAC | 14.41 A max at 100 VAC; 7.2 A max at 200VAC |

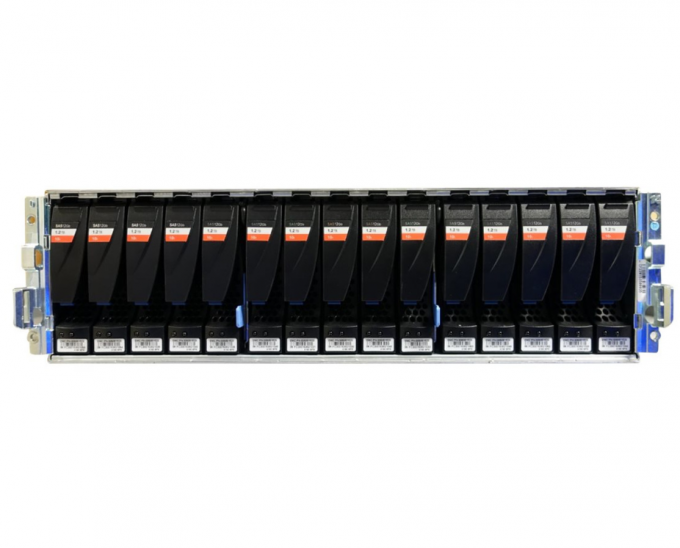

25 X 2.5” Drive DAE | 15 X 3.5” Drive DAE | |||
POWER | ||||
AC Line Voltage | 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz | |||
AC Line Current (operating maximum) | 4.50 A max at 100 VAC, 2.40 A max at 200 VAC | 2.90 A max at 100 VAC, 1.60 A max at 200 VAC | ||
Power Consumption (operating maximum) | 453.0 VA/ 432.0 W max at 100 VAC 485.0 VA/ 427.0 W max at 200VAC | 287.0 VA/ 281.0 W max at 100 VAC 313.0 VA/ 277.0 W max at 200VAC | ||
Power Factor | 0.95 minimum at full load, @ 100V/200V | 0.90 minimum at full load, @ 100V/200V | ||
Heat Dissipation (operating maximum) | 1.56 x 106 J/hr, (1,474 Btu/hr) max at 100 VAC 1.54 x 106 J/hr, (1,457 Btu/hr) max at 200 VAC | 1.01 x 106 J/hr, (959 Btu/hr) max at 100 VAC 1.00 x 106 J/hr, (945 Btu/hr) max at 200 VAC | ||
In-rush Current | 30 Apk “cold” per line cord, at any line voltage | 30 A max “cold” for ½ line cycle, per line cord at 240 VAC | ||
Startup Surge Current | 40 Apk “cold” per line cord, at any line voltage | 25 Amps peak max per line cord, at any line voltage | ||
AC Protection | 15 A fuse on each power supply, single line | 10 A fuse on each power supply, single line | ||
AC Inlet Type | IEC320-C14 appliance coupler, per power zone | |||
Ride-through Time | 12 ms minimum | 30 ms minimum | ||
Current Sharing | ± 5 percent of full load, between power supplies | Droop Load Sharing | ||
WEIGHT AND DIMENSIONS | ||||
Weight kg/lbs | Empty: 10.0/22. 1 Full: 20.23/44.61 | Empty: 14.5/32 Full: 30.8/68 | ||
Vertical size | 2 NEMA units | 3 NEMA units | ||
Height cm/inches | 8.46/3.40 | 13.33/5.25 | ||
Width cm/inches | 44.45/17.5 | 44.45/17.5 | ||
Depth cm/inches | 33.02/13 | 35.56/14 | ||
